White matter and cortical gray matter microstructural alterations in migraine: a NODDI and DTI analysis

The Journal of Headache and Pain volume 26, Article number: 115 (2025) Cite this article

Abstract

Background

The pathophysiological mechanism of migraine remains elusive, thereby impeding the effective treatment of the disease. Current neuroimaging research focuses on changes in brain functional connectivity, functional networks, and macrostructural alterations, which reflect abnormal neuronal function during the disease process. The plasticity changes in neuronal structures and neurotransmitter system dysregulations potentially play a crucial role in migraine onset and chronicity of migraine. This study utilizes multimodal neuroimaging techniques to investigate the microstructural and neurotransmitter alterations in migraine and provides new insights into its pathological mechanisms and therapeutic method.

Methods

Microstructural alterations in both white matter (WM) and cortical gray matter (GM) were evaluated among 40 chronic migraine (CM) patients, 35 episodic migraine (EM) patients, and 45 healthy controls (HCs) using Diffusion Tensor Imaging (DTI) and Neurite Orientation Dispersion and Density Imaging (NODDI) models. Tract-based spatial statistics (TBSS) and Surface-based analysis (SBA) were performed to compare groupwise differences in white and gray matter microstructure, respectively. Furthermore, the cross-modal toolbox JuSpace was used to analyze the correlation between cortical gray matter neurite alterations and neurotransmitter.

Results

In the WM, compared to HC, a decrease in neurite density index (NDI) was identified in the migraine group, and both NDI and fractional anisotropy (FA) were decreased in the CM group. No significant alterations were observed in the EM group. An increase in radial diffusivity (RD) was found in the CM group compared to the EM group. In the cortical GM, compared to HC, the migraine group had fewer neurites in the right insula and temporal pole cortex, and the CM group showed a reduction in neurites in the right middle temporal and fusiform cortex. The cortical GM of neurite damage was negatively correlated with neurotransmitters in migraine and CM. There was no correlation between NODDI and DTI metrics of these brain regions and clinical data after the Bonferroni correction.

Conclusion

Our findings indicated that neurite loss was detected in both WM and cortical GM of migraineurs. As the migraine progresses into chronicity, the axonal damage may become more pronounced. The neurite damage of cortical GM was negatively related to neurotransmitters.

Peer Review reports

Background

Migraine is a common neurological disorder with an enormous burden for individuals and socioeconomic systems [1]. The global prevalence of migraine is estimated to be 14 ~ 15%, with a prevalence of 8.6% in men and 17.0% in women. Migraine can be classified into episodic migraine (EM) and chronic migraine (CM) according to the frequency, duration, and accompanying symptoms of the headache. The EM progresses to the CM at a rate of 2.5 ~ 3.0% per year, while the CM affects approximately 1 ~ 2% of the global population. Migraine is prone to affect individuals in the prime of their lives and is related to several comorbidities, significantly compromising patients’ quality of life [1,2,3,4,5]. However, pathophysiological mechanisms and progression of migraine and its subtypes remain unclear.

As neuroimaging technologies develop, the migraine pathogenesis theories shift from peripheral vascular theory to those centered on central neural mechanisms. The research of functional magnetic resonance image (fMRI) has confirmed the significant neuronal activity in relevant brain regions of migraine [6]. The existing research has demonstrated the remodeling of neuronal structure in chronic pain conditions [7]. The Golgi staining of migraine animal model with nitroglycerin and cortical spreading depression (CSD) showed reduced neuronal complexity in associated brain regions, and a CGRP inhibitor reversed neurite growth [8]. Previous studies of structural and diffusion MRI have shown altered brain macroscopic structure (e.g. local gray matter volume, cortical thickness, surface area, gyrus index and white matter fiber bundles integrity) in patients with migraine [9, 10]. These findings provided indirect evidence of transformations in neural tissue plasticity and adaptation. Recent studies have attempted to employ the advanced diffusion magnetic resonance imaging (dMRI) technique NODDI (Neurite Orientation Dispersion and Density Imaging) to investigate microstructural alterations in white matter among migraine patients. A small sample NODDI study of white matter found decreased orientation dispersion index (ODI) in the medication overuse migraine group, with no statistical difference among other subgroups [11]. A Mendelian randomization study found that decreased ODI in the right posterior thalamic radiation was associated with an increased risk of migraine [12]. The above research utilized the NODDI model to conduct a preliminary investigation of the white matter of migraine-affected brains, establishing methodological foundations for microstructural investigations in migraine. However, they adopted a monomodal analytical approach and did not consider the microstructural alterations of cortical gray matter. Therefore, we applied a traditional diffusion tensor imaging (DTI) model combined with the NODDI model, a biophysically grounded framework quantifying neurite morphology through orientation dispersion and density metrics, to perform a multiscale assessment of the brain microstructure in both white and gray matter among migraine patients [13].

In addition, multiple neurotransmitters, including opioids, glutamate, GABA, and dopamine, play active roles in the cortical modulation of the nociceptive processing [14]. Current research indicates that migraine is closely associated with neurotransmitter systems, including serotonergic [15], dopaminergic [16], GABAergic, and glutamatergic systems [17], all of which are critically involved in the pathophysiological mechanisms of migraine. Neurotransmitters, as chemical messengers that transmit signals among neurons, neurons, and effector cells, may play a pivotal role in the onset and chronication of migraine. However, the relationship between neurotransmitter and microstructural remodeling of cortical neurons of migraine remains to be elucidated. The JuSpace is a software package for integrating various imaging modalities and neurophysiological measures derived from positron emission tomography (PET) [18]. This toolbox was utilized to investigate relationships between neurotransmitters and neuronal plasticity in migraine.

​​Our research hypothesizes that migraine is associated with (1) ​​reduced neurite density​​ in both white matter and cortical gray matter, reflecting ​​microstructural degradation​​. (2) These microstructural changes are expected to manifest as reduced neurite density, with both white matter and cortical gray matter damage potentially being more pronounced in CM compared to EM. (3) These microstructural alterations in white matter tracts and cortical areas may contribute to the underlying mechanisms of migraine onset and chronication.​ (4) Alterations in the microstructure of cortical gray matter may be associated with neurotransmitters.

Materials and methods

Study design and ethics

The design of this study was cross-sectional, and the research was conducted as a case-control study. The study was based on the China Headache Disorders Registry Study (CHAIRS; ClinicalTrials.gov Identifier: NCT05334927). The research was granted ethical approval by the Ethics Committee of Beijing Tiantan Hospital, Capital Medical University (number: KY2022-044). The entire study was conducted in strict adherence to the principles of the Helsinki Declaration (1975) and the National Statement on Ethical Conduct in Research Involving Human Subjects (1999). It is declared that no conflicts of interest are held by the authors of this study.

Study subjects

Participants who met the criteria were divided into three groups including HC (n = 45), EM (n = 35), and CM (n = 40). All the participants were enrolled in the HeadacheCenter, Department of Neurology, Beijing Tiantan Hospital, CapitalMedical University from October 2020 to October 2023. Demographic data, body mass index (BMI), headache duration, Visual Analogue Scale (VAS), Patient Health Questionnaire-9 (PHQ-9), Headache Impact Test-6 (HIT-6), Generalized Anxiety Disorder-7 (GAD-7), Migraine Disability Assessment (MIDAS), and Pittsburgh Sleep Quality Index (PSQI) were recorded for all participants. All the patients with migraine had no history of aura and medication overuse. All patients were scanned during the interictal period. The interictal period was defined as ≥ 72 h from the preceding and following attacks [19].​ A mild headache was reported in 1 EM and 2 CM participants during scanning. The criteria for inclusion of migraineurs: (1) All the migraineurs were diagnosed according to ICHD-3 [5]; (2) The age range is from 16 to 65 years; (3) No contraindications to MRI examination (e.g. claustrophobia, metal in the body); (4) All patients demonstrated right-hand dominance; (5) A complete set of imaging data and clinical information was available for all patients. Criteria for exclusion of patients with migraine: (1) Other types of primary headaches; (2) Secondary headache; (3) Inaccurate diagnosis; (4) Other conditions that can lead to overuse of analgesics, such as musculoskeletal disorders and rheumatic diseases; (5) The poor quality of the imaging data (significant susceptibility artifact or incomplete raw MRI data); (6) The incompleteness of the clinical information; (7) Notable brain lesions or white matter hyperintensities (Fazekas score above 1, especially around the lateral ventricular body). The inclusion criteria for HCs were: (1) Fulfilment of MRI scan requirements (no claustrophobia syndrome, no metals in the body, etc.); (2) Absence of neurological or other major systemic diseases; (3) Match with age, gender of migraineurs. Exclusion criteria: (1) Pregnancy or lactation; (2) Contraindication to MRI; (3) Poor quality MRI data (significant susceptibility artifact or incomplete raw MRI data); (4) Obvious brain lesions or white matter hyperintensities, with Fazekas score exceeding 1, particularly at the level of the lateral ventricular body.

MRI data acquisition

MRI images were obtained using a 48-channel Signa Premier 3.0T superconducting magnetic resonance imaging scanner. T1-weighted images were acquired using MP-RAGE sequences. The specific parameters are as follows: sagittal acquisition, field of view (FOV) = 250 × 250 mm2, slice number = 192, flip angle = 8°, preparation time = 880 ms, recovery time = 400 ms, acceleration factor = 2, acquisition time = 4 min, and 1 × 1 × 1mm3 of spatial resolution. A multi-shell spin-echo echo-planar imaging sequence was employed to capture diffusion-weighted images based on the specified parameters: repetition time = 5285 ms, echo time = 85 ms, data matrix = 104 × 104, field of view = 208 × 208 mm2, slice thickness = 2 mm, slices = 78, gradient direction = 108, and diffusion sensitivity coefficients (b) = 0, 1000, and 2000s/mm2, 50 diffusion-weighted directions at each b-value and 9 b0 scans. During the MRI procedure, participants were required to remain awake and relaxed and to keep their eyes closed. To minimize noise and head motion during scanning, earplugs and cushioning foam pads were made available.

MRI data preprocessing

Before pre-processing, two experienced neuroradiologists visually examined each participant’s diffusion and T1-weighted images for significant artifacts. Briefly, the preprocessing procedure included rectification of eddy current artifacts, reduction of noises, rectification of inter-volume head motion artifacts, and extraction of brain tissue. Images were processed by using the FMRIB software library (FSL, version 6.0.1; http://www.fmrib.ox.ac.uk/fsl). The dcm2niigui tool was used to convert the DICOM format of all diffused data into NIFTI format. The topup tool was applied for estimating and correcting susceptibility induced distortions by using anterior to posterior encoding direction and posterior to anterior phase-encoding direction. We used the eddy_openmp command to correct head motion and eddy current distortions. Brain masks from the b0 image of each participant was created by using FSL’s BET (Brain Extraction Tool).

DTI model and metric computation

DTI is a simple data-driven model. It is widely used to study white matter in the brain. Key indicators of the DTI model include fractional anisotropy (FA), mean diffusivity (MD), axial diffusivity (AD), and radial diffusivity (RD). Quantitative assessment of global white matter alterations can be achieved through computational summation of diffusion tensor-derived fiber vectors [20]. It makes DTI more sensitive to white matter. FMRIB’s Diffusion Toolbox (FSL-FDT, http://fsl.fmrib.ox.ac.uk/fsl/fslwiki/FDT) was used to correct for motion, eddy current correction and gradient directions. The pre-processed image data was analyzed using the FSL toolbox DTIFIT, based on a diffusion tensor model, to calculate the FA, MD, AD, and RD values.

NODDI model and metric computation

The NODDI is currently one of the most advanced diffusion models. Its feature is the integration of MRI signals with the biological information of neural tissue, increasing the biological interpretability of the results. The principle of the NODDI model is based on the division of each voxel into three compartments: the neurite, the CSF, and the extra-neurite tissue [21]. It makes more definitive tissue pointing. The NODDI model outperforms the traditional DTI model because of its ability to assess neurite density and orientation in WM and GM and minimize the volume effects [22, 23]. This makes it a promising technique for clinical applications [24, 25]. The main metrics of the NODDI model include neurite density index (NDI), orientation dispersion index (ODI), and isotropic volume fraction (ISOVF) [24]. The reliability of the NODDI model has been confirmed in various neurological and psychiatric disorders, including through post-mortem studies and animal models [26, 27]. The NODDI MATLAB toolbox (version 1.0.5; https://www.nitrc.org/projects/noddi_toolbox) was used with default parameters to produce maps of NDI, ODI and ISOVF. The usual biological interpretation of the NODDI metric is that a decrease in NDI indicates neurite loss, a decrease in ODI suggests a reduction in neurite complexity, and an increase in ISOVF indicates inflammation [28, 29].

Cortical reconstruction based on freesurfer

T1 structural images were reconstructed using FreeSurfer version 6.0 (https://surfer.nmr.mgh.harvard.edu). The tasks of image processing included head motion correction, removal of non-brain tissue, segmentation of brain tissue, cortical reconstruction, and cortical surface inflation.

Tract-based Spatial statistical analysis (TBSS)

Compared to traditional voxel-based method, TBSS merges the advantage of voxel and fiber tract analysis, resolves issues aligning and smoothing nuclei, and enhances sensitivity, objectivity, and interpretability in results [30]. The DTIFIT toolbox within FSL was employed to generate the FA, MD, AD and RD maps based on the DTI model. The FA map threshold was set at 0.2, and the average FA was calculated for all subjects. FA images were thinned to generate an average FA skeleton. The MD, AD, RD, NDI, ODI and ISOVF skeletons were generated by the “tbss_non_FA” script. The white matter skeleton is composed of voxels located in the core of the white matter, avoiding contamination by voxels signaling from adjacent tissues. To validate the robustness of our results, intergroup comparisons of total intracranial volume (TICV) were systematically performed. The results indicated no statistically significant intergroup differences in TICV (all p > 0.05; Table S1-2). In this investigation​, the non-parametric white matter skeleton was calculated using FSL randomization command, with adjustments made for sex and age as covariates. A corrected P-value was obtained by performing threshold-free cluster enhancement (TFCE) and 5000 permutations. Statistical significance for the white matter voxels was determined at a corrected P-value<0.05 following adjustment for multiple comparisons using the family-wise error (FWE) rate control.

Surface-based analysis (SBA)

The SBA had significant advantages over traditional voxel-based methods. It preserves the spatial continuity of cortical structures and minimizes the contamination of cortical gray matter by the CSF and the white matter [31].The initial step entailed the alignment of the NODDI map with the T1 structural image, utilizing a 6-degrees-of-freedom boundary-based registration (BBR). Subsequently, the mid-thickness surface was built. It minimized interference from signals of surrounding tissues. The NODDI measures (NDI, ODI, ISOVF) for each subject were projected onto the surface at mid-thickness. In the final step of the process, the projected maps were resampled into the template of surface space for the analysis in the future. All surface maps were smoothed using a Gaussian kernel filter with a full width at half maximum (FWHM) of 10 mm. The smoothing procedure was performed on the surface after projecting the relevant metrics from cortical vertices, thereby enhancing the accuracy of the statistics [32,33,34].

Spatial correlation between cortical Gray matter neurites damage and neurotransmitter maps

The JuSpace toolbox facilitated cross-modal spatial correlations between neuroimaging and the nuclear imaging (https://github.com/juryxy/JuSpace). The JuSpace toolbox explored spatial interactions between neurite damage and receptors/transporters. The average neurotransmitter map was generated from PET/SPECT of independent healthy volunteers, and processed according to the methods outlined in the JuSpace publication, including rescaling and normalizing of Montreal Neurological Institute space [18]. We aimed to known whether spatial pattern of NDI in patients with migraine, compared to HCs, resembles distribution of nuclear imaging-derived neurotransmitter maps from independent healthy volunteer populations included in the toolbox, such as D1/D2 receptor, dopamine transporter (DAT), 6-fluoro-(18 F)-L-3,4-dihydroxyphenylalanine (FDOPA), 5-HT1b receptor, 5-HT1a receptor, 5-HT2a receptor, serotonin transporter (SERT), noradrenaline transporter (NAT), µ-opioid receptors (MU), kappa opioid receptor (KappaOp), vesicular acetylcholine transporter (VAChT), cannabinoid 1 receptor (CB1), metabotropic glutamate receptor 5 (mGluR5), N-methyl-D-aspartic acid receptor (NMDA) and gamma-aminobutyric-acid type a (GABAa). The toolbox was utilized to extract groups mean values from neurotransmitter and NDI maps, with a particular focus on GM regions from neuro-morphometrics atlas. The mean regional values of patients’ NDI maps were extracted and z-transformed with respect to HCs. Spearman correlation coefficients (Fisher’s z-transformed) were computed between the z-transformed NDI maps of patients and spatial distribution of neurotransmitter maps. The distribution of observed Fisher’s z-transformed individual correlation coefficients was tested for significant deviation from zero by calculating exact permutation-based p-values in the JuSpace, which involved 10,000 orthogonal permutations randomly assigning group labels. Spatial autocorrelation was adjusted by the computing partial correlation coefficients between the NDI and the neurotransmitter, while local GM probabilities, estimated from the SPM12-provided TPM.nii, were used for adjustment. False discovery rate (FDR) correction (Benjamini-Hochberg procedure) was employed for multiple comparison correction, using a P-value threshold of 0.05 [18, 35, 36].

Statistical analysis

The Kruskal-Wallis H test assessed differences from non-normally distributed data, such as age and BMI. Gender differences were analyzed using the Chi-square test. The clinical scales were tested using Independent Samples t-tests or Mann-Whitney U test. FSL Randomize tool (version 2.1), a permutation-based statistical inference method known as “randomize,” was employed to compare voxel-wise TBSS differences in FA, MD, AD, RD, NDI, ODI, and ISOVF values of white matter across groups, utilizing TFCE. For the reliable statistical results, 5000 iterations were carried out. Finally, the significance threshold was set at p < 0.05 after correction for multiple comparisons (two-sided, FWE correction). To analyze differences in cortical NODDI metrics between migraine subgroups and healthy controls, we applied the mri_glmfit tool to fit a generalized linear model (GLM). All the results from the Monte Carlo simulations (uncorrected p < 0.01) were corrected for multiple comparisons (using mri_glmfit-sim function) with 10,000 iterations, for both hemispheres, and the clustering threshold was p < 0.05. In the statistics, age and gender were incorporated as covariates, and the statistics were adjusted for multiple comparisons. The positive results were visualized on the inflated surfaces of the brain cortex. Correlations between the DTI and NODDI metrics and clinical characteristics (duration of migraine, VAS scores, HIT-6 scores, PHQ-9 scores, GAD-7 scores, PSQI scores, MIDAS scores, and MoCA scores) were assessed through Pearson’s correlation analysis. The Bonferroni correction method was conducted for the significance test, with threshold set at p < 0.05/N (where N represents the number of correlation analyses performed).

Results

Demographic data and neuropsychological evaluations

There were 128 participants in this study, including 46 HC, 37 EM, and 45 CM. After conducting quality control, one HC participant was excluded for poor MRI data quality. Five CM participants were excluded, two for poor MRI data quality and three for the significant white matter hyperintensities. Likewise, two EM participants were excluded, one due to poor MRI data quality and the other due to the white matter hyperintensities (Fig. 1). There were no statistically significant differences in age, gender, and BMI among three groups. The CM group showed higher PHQ-9 score, GAD-7 score, PSQI score, and MIDAS score (Table 1).

Fig. 1
figure 1

Participant inclusion-exclusion process flowchart. HC, healthy control; EM, episodic migraine; CM chronic migraine

Full size image
Table 1 Clinical and demographic features of participants
Full size table

TBSS analysis based on the DTI and NODDI model

The DTI and NODDI models were employed to provide an objective evaluation of the pathological changes in white matter in both the migraine group and the HC, as well as among the subgroups. To enhance the robustness of the results, only fiber tracts with more than 30 voxels were included in the analysis [37] (Tables 2, 3 and 4). The migraine group demonstrated a reduction of NDI values in fiber bundles such as the right superior longitudinal fasciculus (SLF), inferior longitudinal fasciculus (ILF), inferior frontal-occipital fasciculus (IFOF), cingulum (hippocampus) (CGH), and uncinate fasciculus (UF) compared to HC (Fig. 2). After performing multiple comparison corrections, there was no significant variation existed between the migraine and HC regarding DTI indicators. Next, we compared white matter differences across the migraine subgroups (EM and CM) and HC. Compared to HC, the CM exhibited reduced FA and NDI values (Fig. 3). Fiber bundles with reduced FA values are all right of SLF, ILF, IFOF, CGH, UF, cingulum (cingulate gyrus) (CG) and anterior thalamic radiation (ATR). Fiber tracts with reduced NDI values are all right of SLF, ILF and UF. Additionally, RD was significantly elevated in CM compared to EM (Fig. 4). Fiber tracts with increased RD values are bilateral SLF, right ILF, right IFOF, bilateral ATR, right body of corpus callosum (BCC) and left corticospinal tract (CST). White matter changes did not show significant differences between the EM and HCs.

Table 2 White matter regions of statistically significant differences in NDI between migraine and HCs
Full size table
Table 3 White matter regions of statistically significant differences in FA and NDI between CM and HCs
Full size table
Table 4 White matter regions of statistically significant differences in RD between CM and EM
Full size table
Fig. 2
figure 2

White matter regions (blue) showed decreased NDI in patients with Migraine compared to HCs group (PFWE < 0.05). HC, healthy control; NDI, neurite density index; L, left; R, right

Full size image
Fig. 3
figure 3

White matter regions (blue) showed decreased FA and NDI in patients with chronic migraine compared to HCs group (PFWE < 0.05). CM, chronic migraine; HC, healthy control; FA, fractional anisotropy; NDI, neurite density index L, left; R, right

Full size image
Fig. 4
figure 4

White matter regions (red yellow) showed increased RD in patients with CM compared to EM group (PFWE < 0.05). CM, chronic migraine; EM, episodic migraine; NDI, neurite density index L, left; R, right

Full size image

SBA analysis based on NODDI model

In the current study, we compared differences in neurites within the gray matter of the cortex between HCs and migraine group (including EM and CM). The migraine group showed fewer neurites in the right insula and temporal pole cortex when compared to HC (Fig. 5; Table 5). Patients with CM showed a reduction in neurites across several brain regions, including the right middle temporal and fusiform cortex, compared to HC (Fig. 6; Table 6). The patients with EM revealed no statistical difference in neurite when compared to HC or patients with CM.

Fig. 5
figure 5

Gray matter regions (blue) showed decreased NDI in the Migraine group compared to HCs group. HC, healthy control; NDI, neurite density index; L, left; R, right

Full size image
Table 5 Brain region with NDI changes in migraine
Full size table
Fig. 6
figure 6

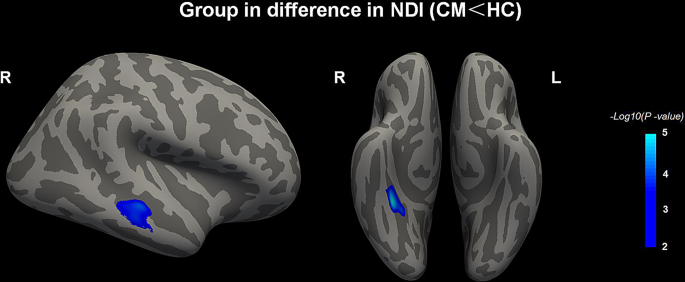

Gray matter regions (blue) showed decreased NDI in the chronic migraine group compared to HCs group. CM, chronic migraine; HC, healthy control; NDI, neurite density index; L, left; R, right

Full size image
Table 6 Brain region with NDI changes in CM
Full size table

Result of correlation analysis

Correlation analysis using Pearson’s method was applied to extracted indicator value in brain regions from Tables 2, 3, 4, 5 and 6 and clinical variables. Regrettably, following Bonferroni correction for the multiple comparisons, no statistically significant relationships were detected between the regional NDI, FA, and RD values and the clinical characteristics (p > 0.05). Compared to HC group, the migraine group was correlated with the four neurotransmitter profiles, namely SERT (r = -0.117, p = 0.019 FDR corrected), D2 (r = -0.120, p = 0.011 FDR corrected), DAT (r = -0.116, p = 0.029 FDR corrected) and FDOPA (r = -0.102, p = 0.024 FDR corrected) (Fig. 7A). The spatial distribution of the D2 (r = -0.106, p = 0.039 FDR corrected) was related to CM (Fig. 7B). The negative correlation coefficients for both groups indicate neurite reduction in patients compared to HC in areas with high neurotransmitter density.

Fig. 7
figure 7

Spatial correlation between cortical neurites alteration and nuclear imaging-derived neurotransmitter distribution. A Reduction of cortical gray matter neurites induced by Migraine vs. HC comparisons was associated with the spatial distribution of serotonin transporter and dopamine D2, dopamine transporter and 6-fluoro-(18 F)-L-3,4-dihydroxyphenylalanine neurotransmitter maps. B Reduction of cortical gray matter neurites induced by CM vs. HC comparisons was associated with the spatial distribution of dopamine D2 neurotransmitter maps. *p<0.05 (FDR correction); CM, chronic migraine; HC, healthy control; FDR, false discovery rate; 5HT1a, serotonin 5-hydroxytryptamine receptor 1a; 5HT1b, serotonin 5-hydroxytryptamine receptor 1b; 5HT2a, serotonin 5-hydroxytryptamine receptor 2a; SERT, serotonin transporter; D1, dopamine 1 receptor; D2, dopamine 2 receptor; DAT, dopamine transporter; FDOPA, 6-fluoro-(18 F)-L-3,4-dihydroxyphenylalanine; CB1, cannabinoid 1 receptor; GABAa, gamma-aminobutyricacid type a; KappaOp, Kappa Opioid Receptor; MU, µ-opioid receptor; NAT, noradrenaline transporter; NMDA, N-methyl-D-aspartic acid receptor; VAChT, vesicular acetylcholine transporter; mGluR5, metabotropic glutamate receptor 5

Full size image

Discussion

Here, we investigated microstructural alterations in white matter and cortical gray matter among migraine and its subtypes, using NODDI and DTI models combined with TBSS and SBA. Compared to the HC group, the migraine and CM group showed reduced axons in several fiber bundles. Meanwhile, the demyelination was significant in the CM group compared to the EM group. Compared to the HC group, migraine group exhibited reduced dendrite in the right insula and right temporal pole cortex, while the CM group showed reduced dendrite in the right middle temporal gyrus and right fusiform cortex. Furthermore, multimodal spatial correlation analysis revealed that the spatial pattern of cortical neurite damage in migraine group negatively correlated with the spatial distribution of SERT, D2, DAT, and FDOPA. The spatial distribution of D2 was negatively correlated with the spatial pattern of neurite damage in the CM group (Fig. 8). Our observed findings support the hypothesis of neuronal remodeling and neurotransmitter alterations in migraine and its subtypes. It provides preliminary evidence for the pathological mechanisms involving impaired brain microstructure and neurotransmitter imbalance following repeated nociception stimuli.

Fig. 8
figure 8

This is an overview of brain microstructural changes in migraine and its subtypes. Neurite damage is a pathological feature of migraine. With chronicity of migraine, axonal injury or demyelination becomes more severe. Across several brain regions, cortical neurites are diminished in both migraine and CM. The loss of cortical gray matter neurites is negative associated with neurotransmitters. It was created with http://www.biorender.com/. HC, Health control; EM, episodic migraine; CM, chronic migraine

Full size image

The microstructural integrity of white matter and cortical gray matter is pivotal in sensory processing and pain modulation, providing a medium for communication between brain regions implicated in pain perception. Previous studies employing DTI models to detect WM alterations in migraine and its subgroups have predominantly emphasized global WM changes, yet lack tissue specificity, and inconsistent are findings reported across investigations [10, 38]. Macroscopic neuroimaging studies have identified cortical thickness and surface area of alterations in related brain regions of migraine [39, 40]. It has been not clear what type of changes in neural tissue leads to the remodeling of cortex. We first applied DTI and NODDI models to identify the specific tissues involved in the pathological damage of white and gray matter in migraine and its subtypes. Compared to HC, the migraine group exhibited reduced NDI values in the NODDI model, while the DTI model showed negative results. Existing research using the DTI technique did not identify significant differences in white matter between migraine and HC [37, 41]. It was not difficult to understand, likely due to the inherent limitations of the DTI model, which was less sensitive to microstructural changes [22]. Furthermore, being involved in different subgroups within migraine group further increased the difficulty of detection. In particular, it should be noted that the differences in acquisition and analysis parameters might also be responsible for influencing the results [42]. However, some DTI studies also reported alterations of WM in migraine [43, 44]. As anticipated, the NODDI model successfully detected neurites loss in patients with migraine. In CM, a reduction in FA and NDI was noted, emphasizing the clear and robust evidence of axonal injury. Meanwhile, reduction of dendrites was observed in the cortical regions of CM. The cortico-subcortical microstructural alterations may reflect potential neuroanatomical substrates contributing to migraine chronification. Compared to EM, higher RD values were observed in the WM fiber tracts of CM. It suggested remarkable demyelination in the white matter of CM. Integrated NODDI and DTI findings demonstrate progressive axonal demyelination and eventual axonal loss with migraine chronification, while cortical gray matter analysis revealed no analogous degenerative changes. There were no statistically significant differences between EM and HC, potentially due to the restrictions of current neuroimaging techniques in detecting subtle changes [45]. In conclusion, our multimodal analysis identified the pathological features of neurites damage in migraine, especially the marked neurites reduction and severe demyelinating changes in CM.

This research identifies that axonal injury of white matter tracts may be involved in the central mechanisms underlying the onset and chronification of migraine. The SLF, ILF, UF and IFOF are the major fiber bundles connecting frontotemporal parieto-occipital regions, which are involved in multiple functions such as visual processing, emotion regulation, and cognitive control [46,47,48]. These fiber tracts connect multiple brain regions for long-range information transfer and processing. They are susceptible to damage. It had been reported that SLF was impaired in patients with depression and deteriorated with the progression of the condition. SLF incompleteness was observed in migraineurs with comorbid anxiety and depression, highlighting the potential role of SLF in the negative mood dynamics of migraine [10, 49]. This finding is consistent with the higher anxiety and depression scores observed in CM compared to EM. Consistent with findings described herein, Rayan et al. found increased RD rates in ILF associated with pain symptoms in patients with chronic pain, suggesting axonal damage is associated with pain processing [50]. The UF connected the lateral orbitofrontal and limbic regions which involved in pain, mood, and emotion [51]. Pathological impairment of ILF and UF may correlate with elevated MIDAS scores in patients with CM. The IFOF integrates visual information, and integrity breaking may lead to disorder in visual working memory [48]. It has been known that CSD plays an important role in the pathological mechanism of migraine. The impairment of IFOF connections may interfere with the flow of information from the occipital cortex to the relevant areas of the brain. This damage may lead to increased excitability in the occipital cortex. Increased excitability may be easy to trigger CSD and lead to recurrent migraine attacks [12]. The corpus callosum (CC) connects the two cerebral hemispheres and provides interhemispheric integration and transmission of information [52]. It also played a role in inhibiting pain [53]. Compared to EM, significant demyelinating changes in the BCC of CM patients may contribute to headache chronification. The primary function of the CG is to participate in the processing of pain and emotions [54]. Microstructural changes in the CG of migraineurs might affect headache and emotional processing. The ATR primarily connects the anterior thalamus to the prefrontal cortex and is involved in pain regulation [55]. CHONG et al. also reported extensive demyelinating alterations of ATR in migraine, suggesting its important role in the pathophysiological process of migraine [56]. The CST origin in the primary and secondary motor and somatosensory cortex and extends into the spinal cord. It is a descending fiber tract that is vital for nociceptive perception [57]. The study of fMRI has shown altered functional connectivity between the periaqueductal gray matter and precentral regions in migraineurs [58]. We previously found partial axonal reduction within the CST in a white matter study of the new daily persistent headaches [59]. Compared to EM, the CST demyelination damage was observed in CM. Demyelination of descending pain-modulatory fibers may contribute to the mechanisms underlying migraine chronification.

Reduced neurite density within cortical gray matter in migraine and its subtypes is first evidenced, with significant decreases demonstrated across multiple brain regions. The reduced NDI in the right insula and temporal pole cortex of migraineurs indicated significant changes in the neuroanatomy of these areas. The insula plays a crucial role in interoception, emotional processing, and the integration of sensory information. The VBM- and FreeSurfer-based studies of cortex morphology suggested reduced cortex volume and surface area of insula in migraine [39, 40]. The studies of fMRI and network mapping confirmed the centrality of the insula in migraine [60,61,62,63]. The reshaping of dendrites in the insula offers an objective explanation for its macroscopic structural and functional alterations, further underscoring the pivotal role of this region in the pathophysiological mechanisms of migraine. The temporal pole is robust anatomical connectivity with the limbic system, mediating the integration of high-order sensory processing with primary affective responses [64, 65]. The studies of task-state fMRI have demonstrated that the temporal pole is involved in multisensory integration and pain processing through the activation of multiple relevant brain regions by painful stimuli in migraine [66]. The decreased complexity of neurons in the insula and temporal pole cortex may impair their information integration function, leading to recurrent headache attacks and the manifestation of complex non-pain symptoms in migraine patients.

A significant reduction in NDI was observed in the right middle temporal and fusiform in CM. The temporal lobe plays a crucial role in multisensory integration, language processing, and regulation of emotions and memory [65,66,67]. Morphological analyses of migraines with and without aura reveal that both groups of migraine patients exhibit a significant reduction in temporal lobe gray matter volume (GMV) compared to HC [68]. The reduction of dendrites in the mid-temporal cortex may be due to a long-term, migraine-specific neurotoxic mechanism, and explains multisensory symptoms with CM. The fusiform gyrus is involved in both visual perception and processing of emotions [69]. The amplitude of low-frequency fluctuations (ALLF) in the right fusiform gyrus is reduced in migraineurs with comorbid depression. This reduction is negatively correlated with the severity of the headache [70]. Reduced neurites in right fusiform gyrus cortex in CM might be more likely to comorbid depression and exacerbate headache severity.

Both models suggested white and gray matter damage in migraineurs. It suggests that migraine may be a disorder characterized by disrupted white matter connectivity. The disrupted connections of various fiber tracts also implicated that the migraine was a heterogeneous disease. These cortical gray matter areas of the reduced neurites were correlated with pain processing, perception, and emotional regulation, shedding light on the pathological mechanisms of migraine, which are associated with cortical gray matter microstructural remodeling. These brain regions may become potential targets for neuromodulation therapy in migraine. The current research also showed a marked right lateralization of neurite loss, underlying mechanisms that warrant further investigation.

Existing studies have found that the cortical and subcortical neural circuits and networks associated with pain and chronic pain interact with the regulation of neurotransmitters [71]. Migraine is often considered a low serotonin syndrome. Reduced serotonin levels in the brain lower the pain threshold, and tricyclic antidepressants also reduce the frequency of migraine attacks by increasing serotonin signaling, further supporting the role of serotonin in migraine pathology [72]. The increased SERT might lead to enhanced serotonin reuptake, reducing its concentration in the synaptic cleft. The genetic studies have highlighted the relationship of SERT protein gene with migraine susceptibility. However, serotonergic biochemistry is complex, and it is clear that a combination of factors (rather than any single factor) contributes to the migraine phenotype [15]. Our finding suggests that following dendritic damage in cortical gray matter, the distribution density of SERT increases, leading to reduced serotonin levels, which may trigger the onset of migraine. Dopaminergic stimulation induces most of the symptoms of a migraine. Dopamine receptor hypersensitivity exists in migraine. Dopaminergic agonists induce yawning, nausea, vomiting, hypotension, and other symptoms of migraine attacks at doses that do not impact individuals without migraine. While on the contrary, dopamine receptor antagonists were effective medications for the treatment of migraine [73]. A research based on an inflammatory soup-induced CM animal model suggests that activation of the D2 inhibits CM-related pain sensitization by blocking the GluA2/ROS positive feedback loop both in vivo and in vitro, indicating that the D2 may be a potential therapeutic target for CM [74]. The studies of PET have reported a significant decrease in presynaptic FDOPA in the right putamen of patients with chronic pain [75]. There is limited research on FDOPA concerning migraine. The results of both previous studies and this research suggest that dopaminergic system dysfunction may be a significant pathological mechanism in migraine, particularly highlighting the dopamine D2 receptor as a potential target with development value for migraine pharmacological treatment.

The disruption of neurotransmitter balance might lead to adaptive changes in neuronal microstructure in the cortical gray matter. Restoring neurotransmitter equilibrium might reduce neurobiological alterations associated with migraine. These alterations included the reduction of cortical gray matter and the damage of neuronal structure. Therefore, maintaining or restoring the homeostasis of neurotransmitters may represent a novel approach for migraine management.

Limitations and future directions

Certain limitations are present in this research. The cross-sectional design of the study cannot draw causal conclusions. Future longitudinal studies are needed to delve the deeper into this enigma. Although this study identified abnormalities of neurites in WM and cortical GM, further validation is required. The validation should be conducted in multicenter and large cohort research. The lack of histopathological evidence for these results warrants cautious interpretation. Due to restriction of imaging equipment and algorithms, the neural circuits in the cortex and subcortex require further investigation. Due to the absence of tissue-specific masks for other brain regions (white matter, brainstem, and subcortical nuclei), this study was limited to a preliminary exploration of the association between cortical gray matter microstructural alterations and neurotransmitter distributions.​ Additionally, there is a vast space to explore relationship between neurotransmitters and changes in neuronal microstructure. We acknowledge that we overlooked the menstrual status of female participants when scheduling the MRI scans. In future studies, we will ensure that menstrual cycle-related hormonal changes are carefully documented. Despite the limitations of our study, the results remain important and contribute new insights into the field of migraine research.

Conclusion

Across several brain regions, neurites are diminished in both migraine and CM. As the migraine progresses into chronicity, the axonal damage may become more pronounced. These findings indicated that neurite damage may be a pathological feature of migraine. The loss of cortical gray matter neurites is negatively associated with neurotransmitters. The present research reveals the central mechanisms underlying migraine onset and chronicity and offers potential targets for novel drug development and neuromodulation therapy.

Data availability

Data can be made available upon request.

Abbreviations

DTI:

Diffusion Tensor Imaging

NODDI:

Neurite Orientation Dispersion and Density Imaging

EM:

Episodic Migraine

CM:

Chronic Migraine

HCs:

Healthy Controls

MA:

Migraine with Aura

MO:

Migraine without Aura

NDI:

Neuronal Density Index

ODI:

Orientation Dispersion Index

ISOVF:

Isotropic Volume Fraction

FA:

Fractional Anisotropy

MD:

Mean Diffusivity

AD:

Axial Diffusivity

RD:

Radial Diffusivity

TBSS:

Tract-Based Spatial Statistics

SBA:

Surface-Based Analysis

BBR:

Boundary-Based Registration

CSD:

Cortical Spreading Depression

CSF:

Cerebrospinal Fluid

SERT:

Serotonin Transporter

DAT:

Dopamine Transporter

FDOPA:

6-Fluoro-(18 F)-L-3,4-Dihydroxyphenylalanine

GABAa:

Gamma-Aminobutyric Acid Type A

MU:

µ-Opioid Receptors

VAChT:

Vesicular Acetylcholine Transporter

mGluR5:

Metabotropic Glutamate Receptor 5

CB1:

Cannabinoid 1 Receptor

NMDA:

N-Methyl-D-Aspartic Acid Receptor

KappaOp:

Kappa Opioid Receptor

NAT:

Noradrenaline Transporter

GLM:

Generalized Linear Model

TFCE:

Threshold-Free Cluster Enhancement

FEW:

Family-Wise Error

SLF:

Superior Longitudinal Fasciculus

ILF:

Inferior Longitudinal Fasciculus

UF:

Uncinate Fasciculus

IFOF:

Inferior Fronto-Occipital Fasciculus

CGH:

Cingulum (Hippocampus)

BCC:

Corpus Callosum

CST:

Corticospinal Tract

ATR:

Anterior Thalamic Radiation

WM:

White Matter

GM:

Gray Matter

BMI:

Body Mass Index

VAS:

Visual Analog Scale

HIT-6:

Headache Impact Test-6

PHQ-9:

Patient Health Questionnaire-9

GAD-7:

Generalized Anxiety Disorder-7

PSQI:

Pittsburgh Sleep Quality Index

MoCA:

Montreal Cognitive Assessment
